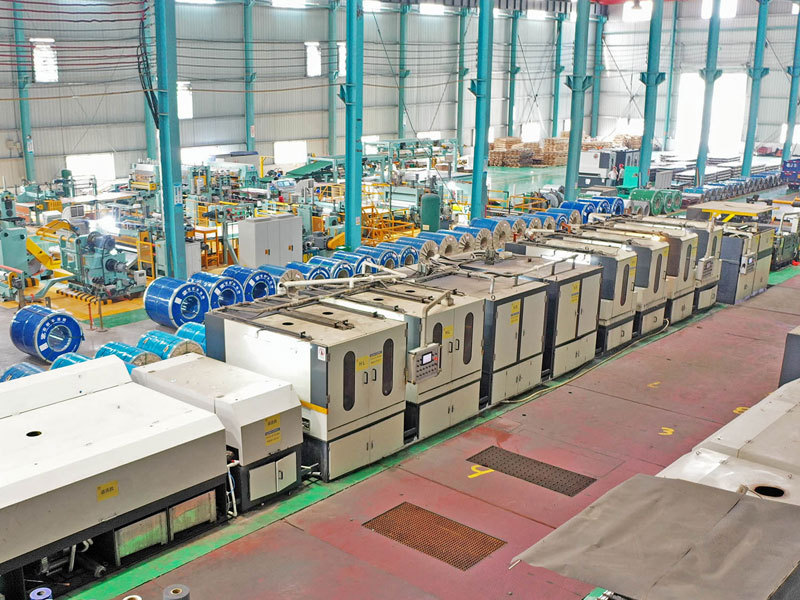

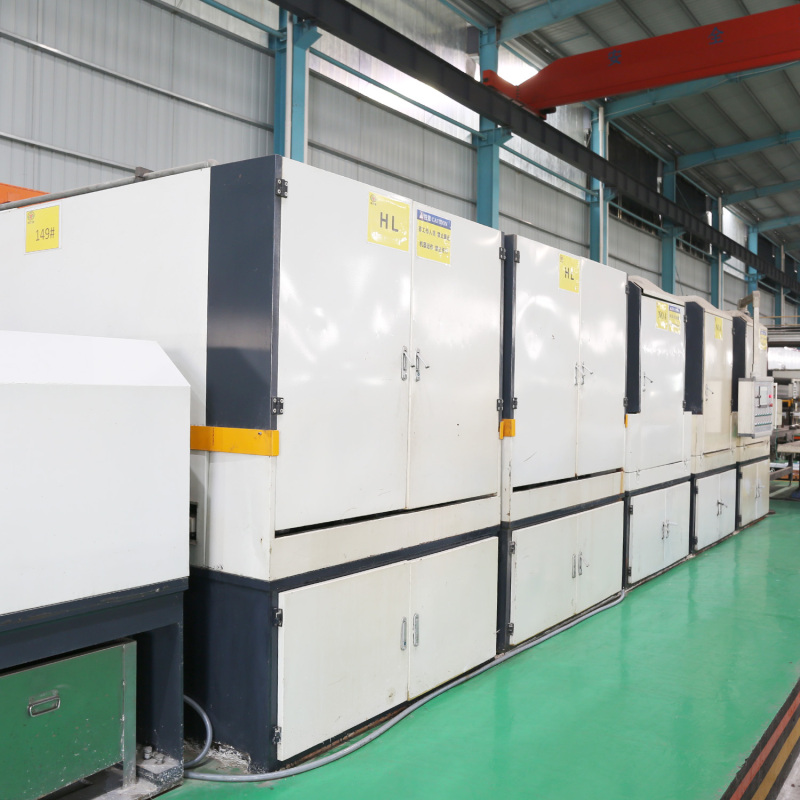

Polishing And Grinding Unit For Stainless Steel

The synchronization of the whole line is stable, the operation is simple, the board input and output are fast, efficient, and the response speed is fast, and the emergency stop automatically protects the board surface.

The area of the whole line is reasonably designed, the basic engineering is simple and practical, the engineering cost is reduced, the site layout is convenient for operators to control, and the production is safe.

High automation, only need two operators, high efficiency.

  • OUYIGANG
  • FOSHAN
  • One Months
  • 1 Set/ Month
  • Information
  • Video

Polishing And Grinding Unit For Stainless Steel


Product Description



The polishing of coils and sheets is one of the most value added operations offered by service centers. Perfect machinery is the key to success in every business, OUYIGANG grinding/ polishing machines are very easy to achieved Matt, Hair -Line, Satin, No.4,No.6 finish. OUYIGANG Metal Surface Polishing Machines can be applied to the top surface of coils and sheets. We are the leading company in the metal processing equipment , our machine cover more than 70% of the Chinese market and is going to meet the worldwide challenge with its extraordinary performance and innovative technology.2_02.jpg2_03.jpg



Basic specification for the machine



Belt abrasive station

No.4


Hairline

Brush abrasive station


SB


System

Wet roller grinding

Wet roller brushing

Wet roller grinding

No. of working unit

2-3 grinding heads

2-4 polishing heads

2-3 grinding heads

Machine weight

Appro 13T

11T

13T

Working width

900,1250,1500mm,

, customized available

Sheet size

1250X2500mm

1550X3000mm

customized available

Sheet thickness min / max

0.3-4mm

0.3-4mm

0.3-4mm

Roller dimensions(Od X width)

300mm

350mm

250mm

Abrasive belt width

Depending on the sheet width



Abrasive belt length

2620mm


2620mm

Speed of the line

6-25M/min

6-25M/min

6-25M/min





Processing capability




  • No.4 finish

The basic sheet selection is to be of 2B or BA sheet and should be preferably polished with 150#,180# abrasive belt. The application verticals of this finish to name a few are in cookware, furniture, elevator, architectural decoration, revolving door, exterior decoration etc,.

  • HAIRLINE finsh

The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with 150# 240#abrasive belt. The application verticals of this finish to name a few are in elevator, architecture decoration, revolving door, furniture, home appliance, auto sector, exterior decoration, etc,.

  • Scotch Brite-Satin finish

The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with abrasive wheels or pads. . The application verticals of this finish to name a few are in architecture decoration, elevators and escalators, furniture, etc,.

  • No.6 finish

These finishes are produced using rotating cloth mops (tampico fibre,muslin or linen) which are loaded with abrasive paste.The finish depends on how fine an a abrasive is used and the uniformity and finish of the original surface. The finish as a non directional texture of varing reflectivity.Satin blend is an example of such a finish.

  • No.7 finish

This is a buffed finish having a high degree of reflectivity.It is produced by progressively using finer and finer abrasives and finishing with buffing compounds. Some fine scratches may remain from the original starting surface.

  • No.8 true mirror finish

This is produced in an equivalent manner to a No.7 finish, the final operation being done with extremely fine buffing compounds. The final surface is blemish free with a high degree of image clarity and is the true mirror finish.

  • No.9 super mirror finish

Very high degree of reflectivity, brilliant, smooth finish produced by polishing with progressively finer grit abrasives then buffing. Super mirror creates light and space. Best for design, decoration and architecture.



 Equipment Features


  • Multi head brushing station, “all in one line ” equipment with No.4—No.6 , Scotch-Brite , Hairline finish

  • Control by PLC complete with touch screen

  • Most of the inside construction is made of tempered stainless steel

  • Horizontal axis rotating and oscillating system

  • Soft, bright and homogeneous surface appearance

  • oil and water mixed ,wet type processing

  • Adjustable brushing pressure

  • Adjustable brush speed

  • Easy abrasives brush roller replacement

  • Adjustable conveyor speed (belt / roller)

  • Different brush grits combinations are possible to perform different surface treatment

  • Emergency security switch

  • Reversal conveyor speed for emergency control

 2_052_06



 2_092_10

Packaging & Shipping


Packaging: all of the machine, equipment and spare parts spray the rustproof oil, cover with oil paper and plastic film.

Shipping: arrange technical workers to load the machine with crane , fixed the machine to the container with strong steel rope, and guarantee your machine shipped to your port without any human causing damage.


Cooperation company



cooperation--company

Contact us


Tel:86-757-88627213

Mobile phone:+86-13425703089

Address detail :No.19,Xingliang Road, Sanzhou Town, Hecheng Street,Gaoming District, Foshan City,Guangdong Province,China.

City: FoShan

Province:GuangDong

Country:China



FAQ


 Q1. How to get the most suitable  polishing machine and best price

       A: Please tell the material you want to working on? and the specification of your working material?

     (Length? Width? Thickness?)



Q2. Do you have the manual of the polishing machine Except the automatic machinery?

      A: Yes, we have.



Q3. If we don’t know how to use the polishing machine, can you teach us?

      A: our customer support engineer will go to cutomer's factory to install the machine , and they will teach the skilled labor complete knowledge about the machine.



 Q4. Do you have the machinery applying to the special steel sheet?

       A: When the sheet thinckness comes to 4mm and more then 4mm, or  there is some special performance to your sheet,it is suggested that the customer come to our company talk about the technical requirement with our engineers.



Q5. What is the useful life of your machine?

      A: The useful life of the equipment depend mainly on the maintainability, and our machine can be used for more then 6 years ,most   of it come to above 10 years  under normal operation and maintenance.
