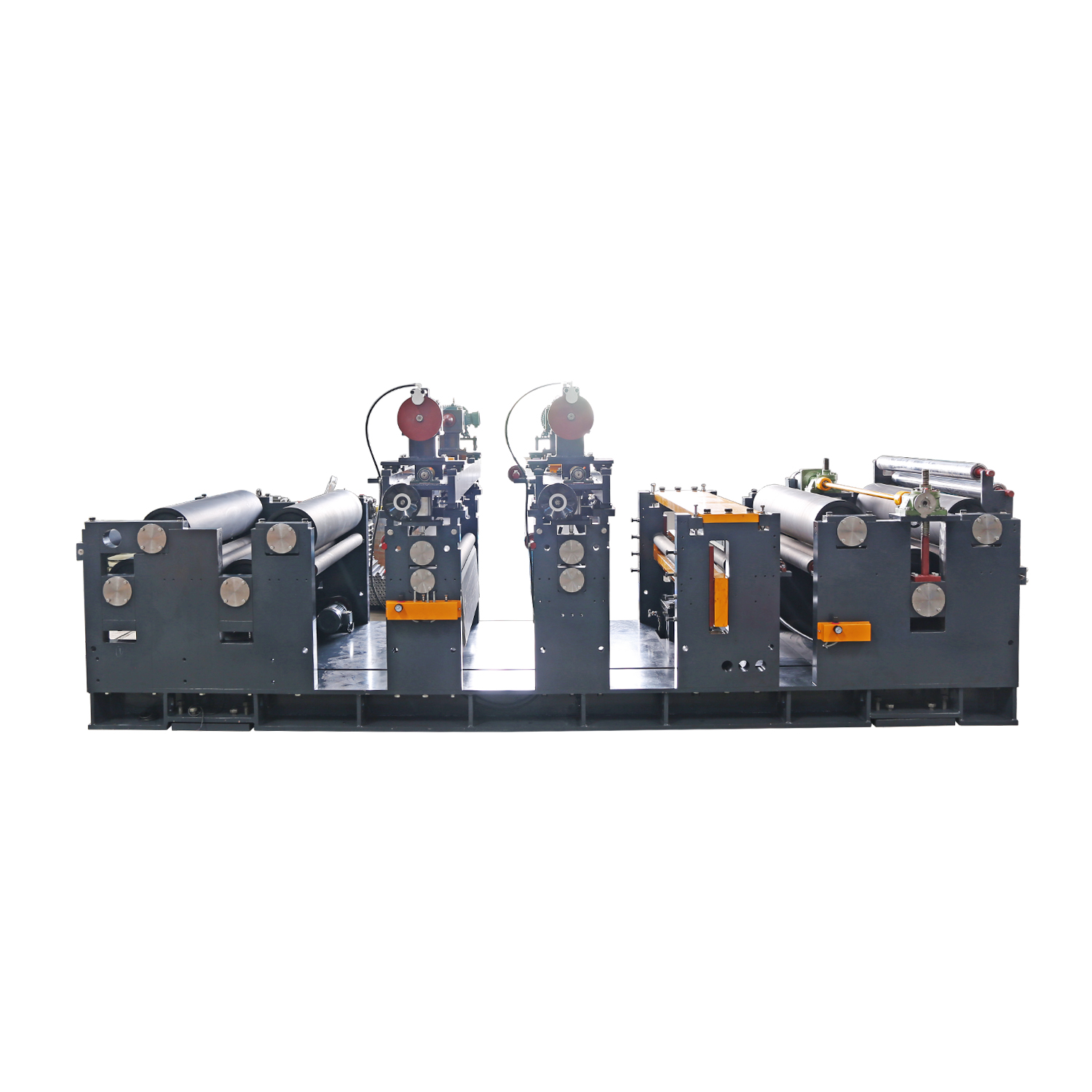

Hairline Buffing Machine
THE PARAMETERS OF STAINLESS STEEL COIL PRODUCTION LINE
| Plate thickness (mm) | 0.4~3.0 | 0.4~3.0 |
| Plate width (mm) | 1250 | 1550 |
| Speed (m/min) | 6~60 | 6~60 |
| Coil outer diameter (mm) | 1900 | 1900 |
| Coil inner diameter (mm) | 508 (610) | 508 (610) |
| Uncoil bearing (T) | 22 | 25 |
| Length of production line (mm) | 37 | 39 |
| The total power unit (KW) | 465 | 568 |
Function and the characteristic
1. It applies to H drawing processing the surface of the 0.4mm-3.0mm stainless steel sheet.
2. Roll wheel deliver with worm-driven ,adjusting speed and frequency conversion with steady transmission.
3. Using electric grinder frequency control, adjusting speed is available.
4. Grinding roll up and down digital control can show the figures on the screen, the machine have memory function, it can adjust itself automatically when input the thickness of the sheet.
5. The important components of the machine are all made of stainless steel.
Mainly Component parts

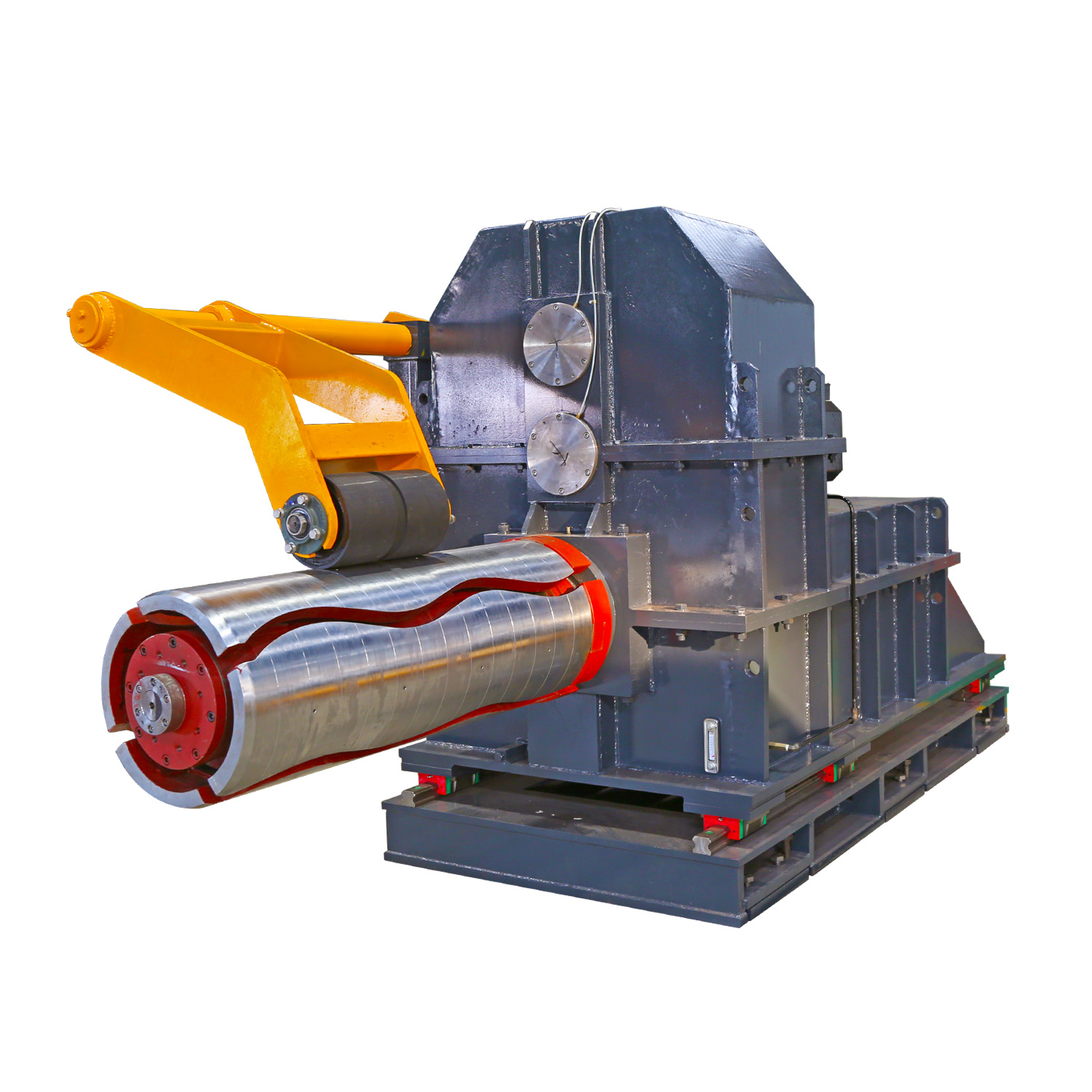

1.Unwinding Machine
2.Pinch Leveling Cutting
3.Paper Collecting Unit
4.Auto Feeding Table
5.Bottom side NO.4 Polishing Machine
6.NO.4 Polishing Machine
7.Hairling Machine
8.Cleaning and Drying Machine
9.Fully Auto Laminator
10.Auto Unloading Table
11.Tension Device (Including CPC)
12.Recoiler
