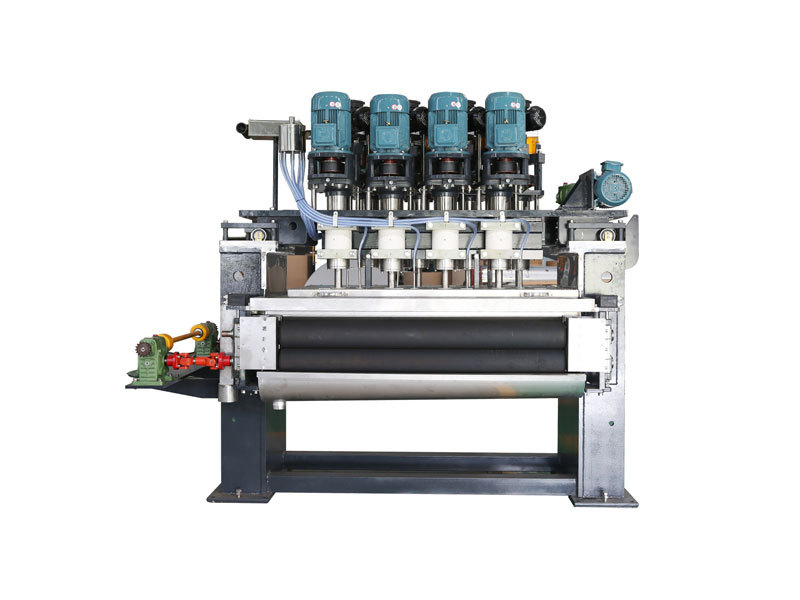

Stainless Steel No.8 Mirror Surface Grinding Machine
Combining foreign advanced design concepts and cutting-edge technology, using Siemens functions to develop a patented CNC operating system, it is the future trend of metal surface processing equipment, with automation, high efficiency, energy saving, safety, stability and other characteristics.
After years of research and development, combined with the actual use of a number of patented technologies of our company, it has the characteristics of automation, high efficiency, energy saving, safety and stability.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video
Stainless Steel No.8 Mirror Surface Grinding Machine
Product Description
Sheet & Plate Metal Polishing Services
OUYIGANG machinery performs automated and manual metal polishing services, for directional grain, non-directional grain and mirror applications.
To meet the growing demand, we specialize in polishing large size sheets and plates up to 144" wide and 420" long. We've also strategically developed a unique niche with our focus on 48" and 72" wide sheets. We offer #4 and #6 brush finishes lengthwise, cross-grain, or non-directional patterns. In addition to #7 dull mirror or #8 bright mirror finishes that are available on all shapes.
Upon request, we can deliver a complete range of Ra finishes with our current certifications. When it applies to a project, we can apply PVC film and laser tape as a protective coating.
Processing capability
No.4 finish
The basic sheet selection is to be of 2B or BA sheet and should be preferably polished with 150#,180# abrasive belt. The application verticals of this finish to name a few are in cookware, furniture, elevator, architectural decoration, revolving door, exterior decoration etc,.
HAIRLINE finsh
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with 150# 240#abrasive belt. The application verticals of this finish to name a few are in elevator, architecture decoration, revolving door, furniture, home appliance, auto sector, exterior decoration, etc,.
Scotch Brite-Satin finish
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with abrasive wheels or pads. . The application verticals of this finish to name a few are in architecture decoration, elevators and escalators, furniture, etc,.
No.6 finish
These finishes are produced using rotating cloth mops (tampico fibre,muslin or linen) which are loaded with abrasive paste.The finish depends on how fine an a abrasive is used and the uniformity and finish of the original surface. The finish as a non directional texture of varing reflectivity.Satin blend is an example of such a finish.
No.7 finish
This is a buffed finish having a high degree of reflectivity.It is produced by progressively using finer and finer abrasives and finishing with buffing compounds. Some fine scratches may remain from the original starting surface.
No.8 mirror finish
This is produced in an equivalent manner to a No.7 finish, the final operation being done with extremely fine buffing compounds. The final surface is blemish free with a high degree of image clarity and is the true mirror finish.
No.9 super mirror finish
Very high degree of reflectivity, brilliant, smooth finish produced by polishing with progressively finer grit abrasives then buffing. Super mirror creates light and space. Best for design, decoration and architecture.
After sale service
1. From the video, it is our engineer to cooperate the machine before the running in foreign workshop.
2. It needs to test the basic function and the normal processing succefully.
Field maintain
1. We supply life time technique service to our customer and just charge basic cost for consumable parts.
2. Field maintains and practices the user to cooperate the PLC and whole procedures.
3. For the broken part of the casting part, it need some time to customized the suitable size, it takes the freight to arrive the company, it is on our charge.
4. The engineer need some time to check the repair problem, so pls give more room for the engineer.
5. The problem of the line does not run again before the engineer arrived.
FAQ
Q1. How to get the most suitable polishing machine and best price
A: Please tell the material you want to working on? and the specification of your working material?
Q2. Do you have the manual of the polishing machine Except the automatic machinery?
A: Yes, we have.
Q3. If we don’t know how to use the polishing machine, can you teach us?
A: our customer support engineer will go to cutomer's factory to install the machine , and they will teach the skilled labor complete knowledge about the machine.
Q4. Do you have the machinery applying to the special steel sheet?
A: When the sheet thinckness comes to 4mm and more then 4mm, or there is some special performance to your sheet,it is suggested that the customer come to our company talk about the technical requirement with our engineers.
Q5. What is the useful life of your machine?
A: The useful life of the equipment depend mainly on the maintainability, and our machine can be used for more then 6 years ,most of it come to above 10 years under normal operation and maintenance.
