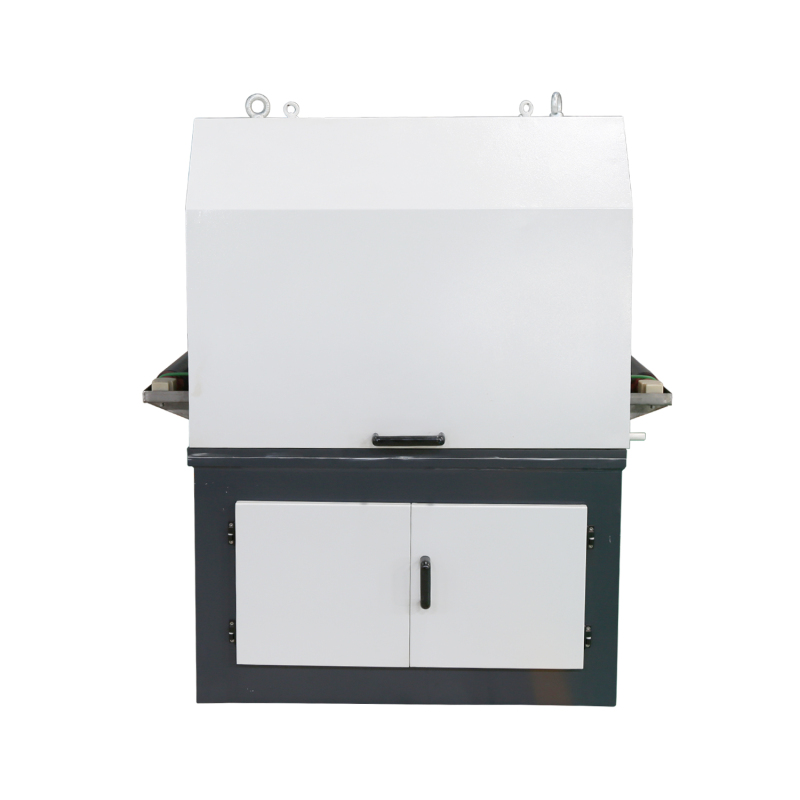

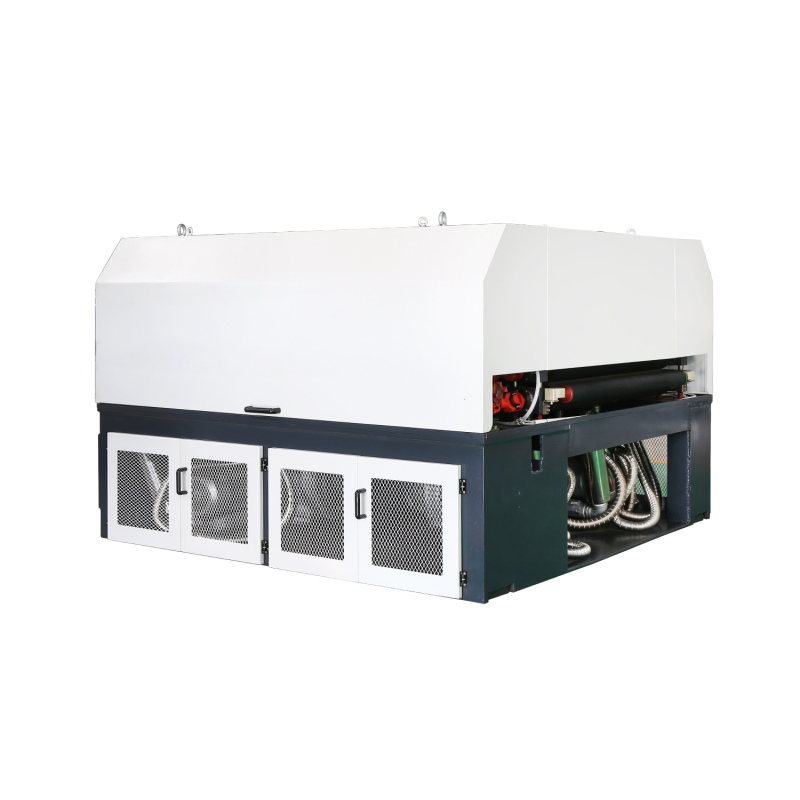

Hairline Buffing Machine

Hairline Buffing Machine

The synchronization of the whole line is stable, the operation is simple, the board input and output are fast, efficient, and the response speed is fast, and the emergency stop automatically protects the board surface.

The area of the whole line is reasonably designed, the basic engineering is simple and practical, the engineering cost is reduced, the site layout is convenient for operators to control, and the production is safe.

High automation, only need two operators, high efficiency.

Brand: OUYIGANG
Product origin: FOSHAN
Delivery time: One Months
Supply capacity: 1 Set/ Month

Information
Video

Hairline Buffing Machine

hairline buffing machine

THE PARAMETERS OF STAINLESS STEEL COIL PRODUCTION LINE

Plate thickness (mm)	0.4~3.0	0.4~3.0
Plate width (mm)	1250	1550
Speed (m/min)	6~60	6~60
Coil outer diameter (mm)	1900	1900
Coil inner diameter (mm)	508 (610)	508 (610)
Uncoil bearing (T)	22	25
Length of production line (mm)	37	39
The total power unit (KW)	465	568

Function and the characteristic

1. It applies to H drawing processing the surface of the 0.4mm-3.0mm stainless steel sheet.

2. Roll wheel deliver with worm-driven ,adjusting speed and frequency conversion with steady transmission.

3. Using electric grinder frequency control, adjusting speed is available.

4. Grinding roll up and down digital control can show the figures on the screen, the machine have memory function, it can adjust itself automatically when input the thickness of the sheet.

5. The important components of the machine are all made of stainless steel.

Mainly Component parts

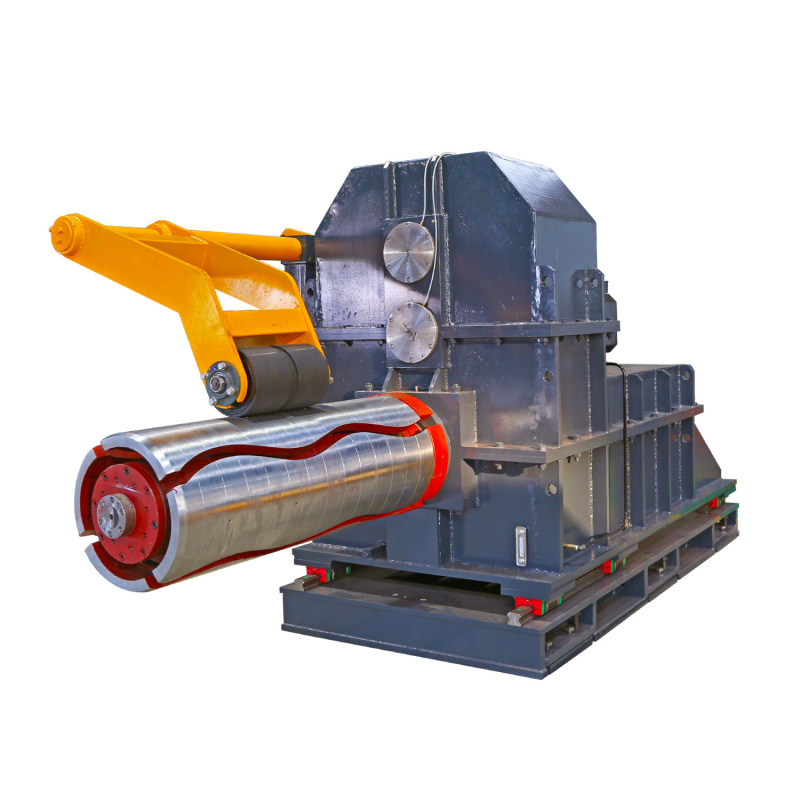

1.Unwinding Machine

2.Pinch Leveling Cutting

3.Paper Collecting Unit

4.Auto Feeding Table

5.Bottom side NO.4 Polishing Machine

6.NO.4 Polishing Machine

7.Hairling Machine

8.Cleaning and Drying Machine

9.Fully Auto Laminator

10.Auto Unloading Table
