Grinding Machine For Stainless Steel Sheet
Integrating globally advanced design concepts with cutting-edge technology, this system features a proprietary CNC operating platform developed using Siemens technology. It represents the future of metal surface processing equipment, delivering automation, high efficiency, energy savings, safety, and unmatched stability.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video

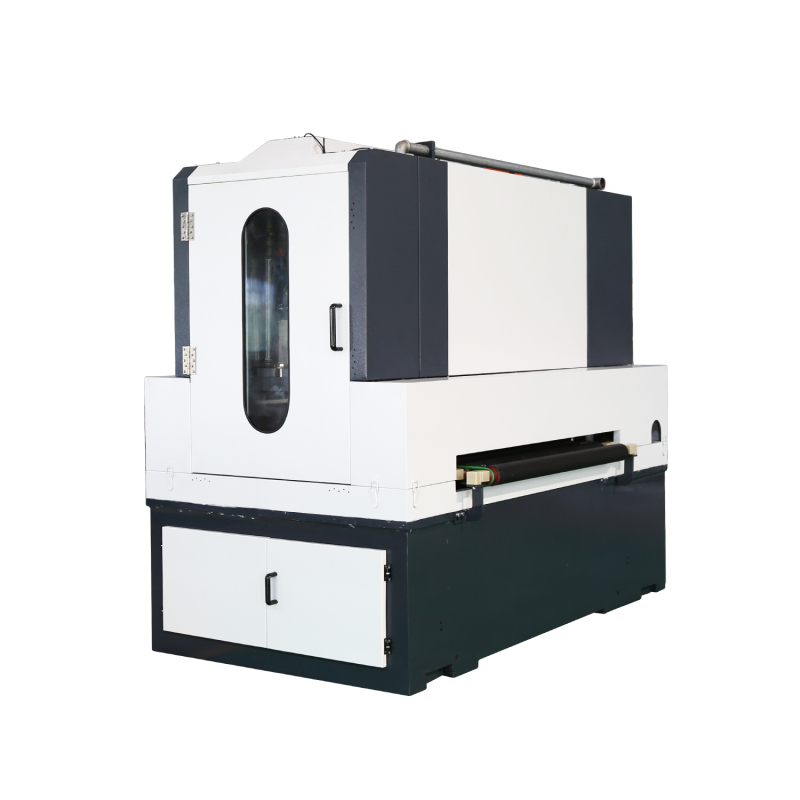

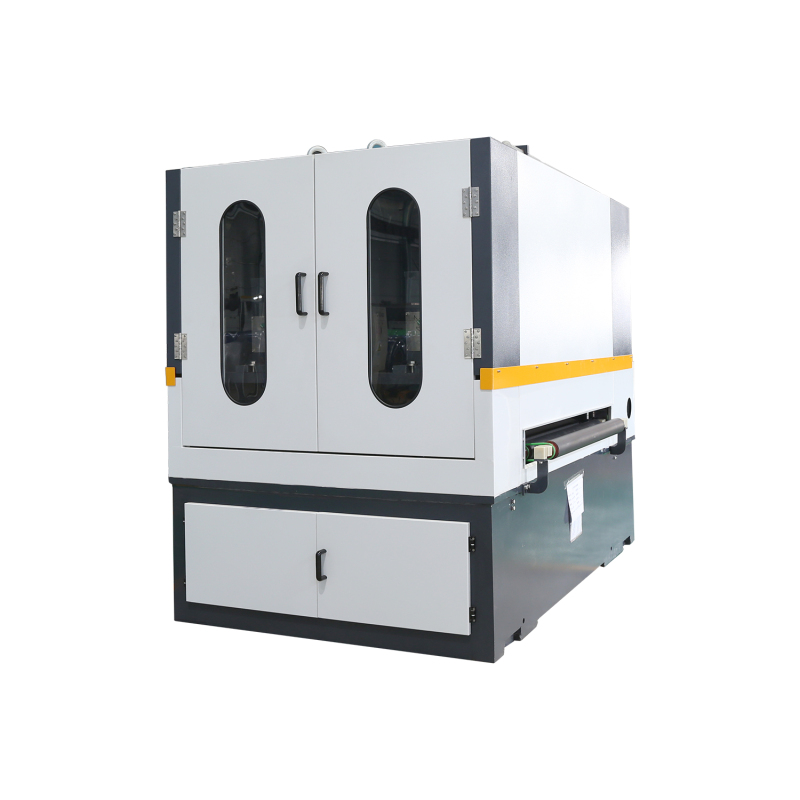

Grinding Machine For Stainless Steel Sheet
The polishing of coils and sheets is one of the most value added operations offered by service centers. Perfect machinery is the key to success in every business, OUYIGANG grinding/ polishing machines are very easy to achieved Matt, Hair -Line, Satin, No.4,No.6 finish. OUYIGANG Metal Surface Polishing Machines can be applied to the top surface of coils and sheets. We are the leading company in the metal processing equipment , our machine cover more than 70% of the Chinese market and is going to meet the worldwide challenge with its extraordinary performance and innovative technology.
Basic specification for the machine
Belt abrasive station | No.4 | / | Hairline |
Brush abrasive station | / | SB | / |
System | Wet roller grinding | Wet roller brushing | Wet roller grinding |
No. of working unit | 2-3 grinding heads | 2-4 polishing heads | 2-3 grinding heads |
Machine weight | Appro 13T | 11T | 13T |
Working width | 900,1250,1500mm, , customized available | ||
Sheet size | 1250X2500mm 1550X3000mm customized available | ||
Sheet thickness min / max | 0.3-4mm | 0.3-4mm | 0.3-4mm |
Roller dimensions(Od X width) | 300mm | 350mm | 250mm |
Abrasive belt width | Depending on the sheet width
| ||
Abrasive belt length | 2620mm | 2620mm | |
Speed of the line | 6-25M/min | 6-25M/min | 6-25M/min |
Processing capability
- No.4 finish
Why Our Finishes Stand Out?
✔ Industry-Leading Precision – Consistent results for architectural, automotive & design applications.
✔ Customizable Solutions – From No.4 satin to No.9 super mirror, we meet global standards.
✔ Durability + Aesthetics – Scratch-resistant, easy-to-maintain finishes for long-term value.
Ideal for: Architects, interior designers, appliance manufacturers, and metal fabricators seeking premium stainless steel finishes.
Equipment Features
1. Multi-Process Integrated Polishing System
Single-line processing covers No.4 to No.6 finishes, Scotch-Brite® satin, and Hairline effects.
2. Intelligent Control System
PLC with touchscreen HMI for digital parameter presets.
3. Military-Grade Construction
Tempered stainless steel internal structure with 3x corrosion resistance
4. Hybrid Motion Polishing Unit
Horizontal-axis rotation + oscillation for 3D surface uniformity.
5.Precision Surface Control
Oil-water mixed wet processing creates soft & homogeneous luster.
6. Fully Adjustable Parameters
Stepless adjustment of brushing pressure/speed/conveyor for 0.3-6mm sheets.
7. Rapid Maintenance Design
Quick-change brush rollers (3min) with 80-600 grit compatibility.
8. Smart Safety Protection
Dual safety system: E-stop + reversible conveyor speed。
Packaging & Shipping
Triple anti-corrosion protection: All machines & parts coated with long-term rust preventive oil, wrapped with oil-proof paper + PE moisture barrier film
Shock-absorbing packaging: Precision components secured with custom foam molds + reinforced wooden crates
Shipping Assurance
Certified technicians operate overhead cranes for loading, with military-grade steel ropes + anti-slip pads for 4-point container securing
Cooperation company
Our Services
After-sale service:We supply life time technique service to our customer and just charge basic cost for comsumable parts.

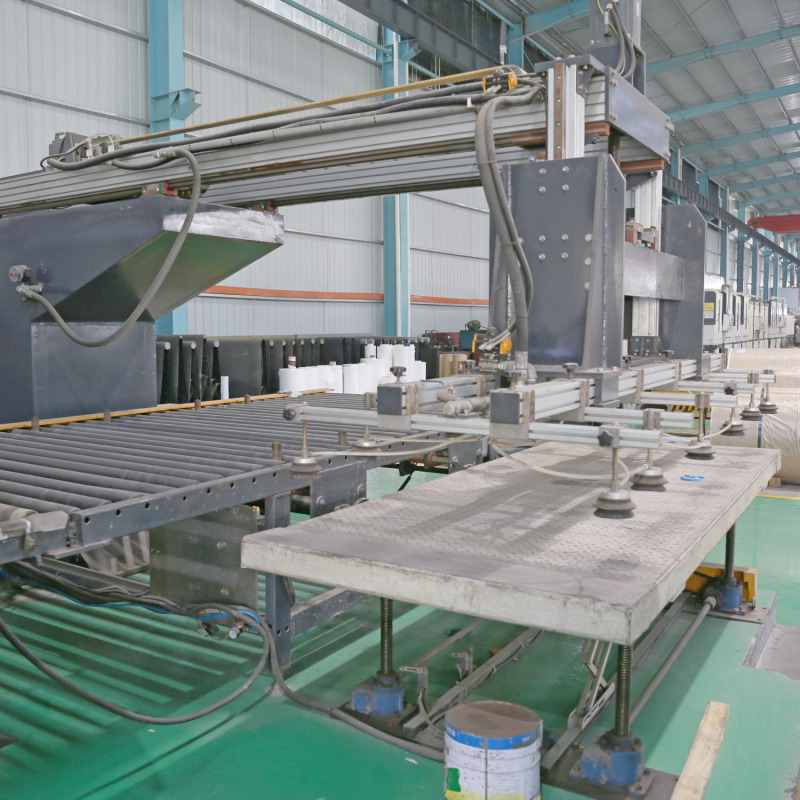

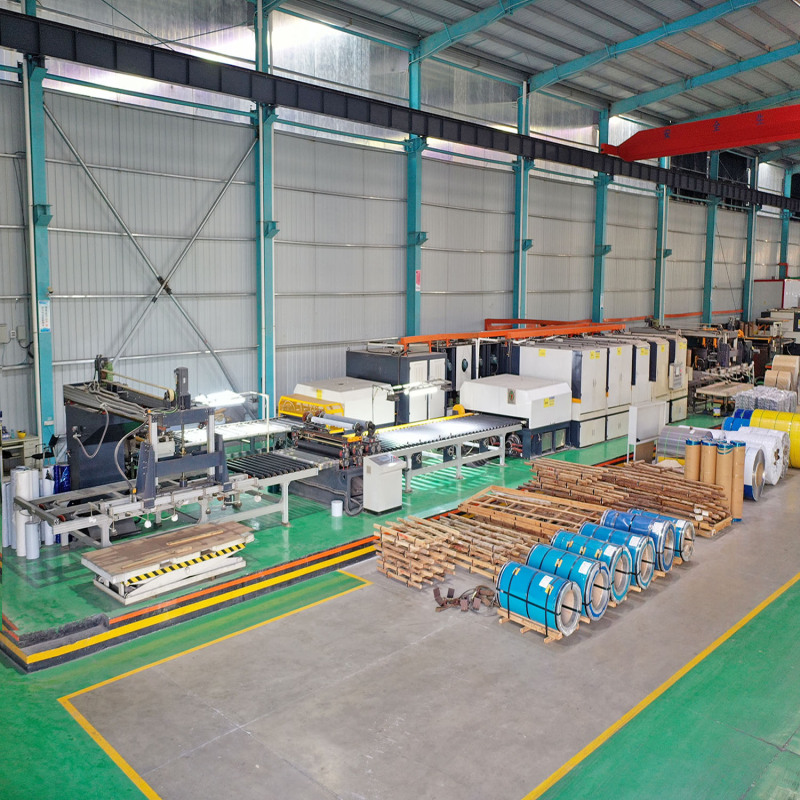

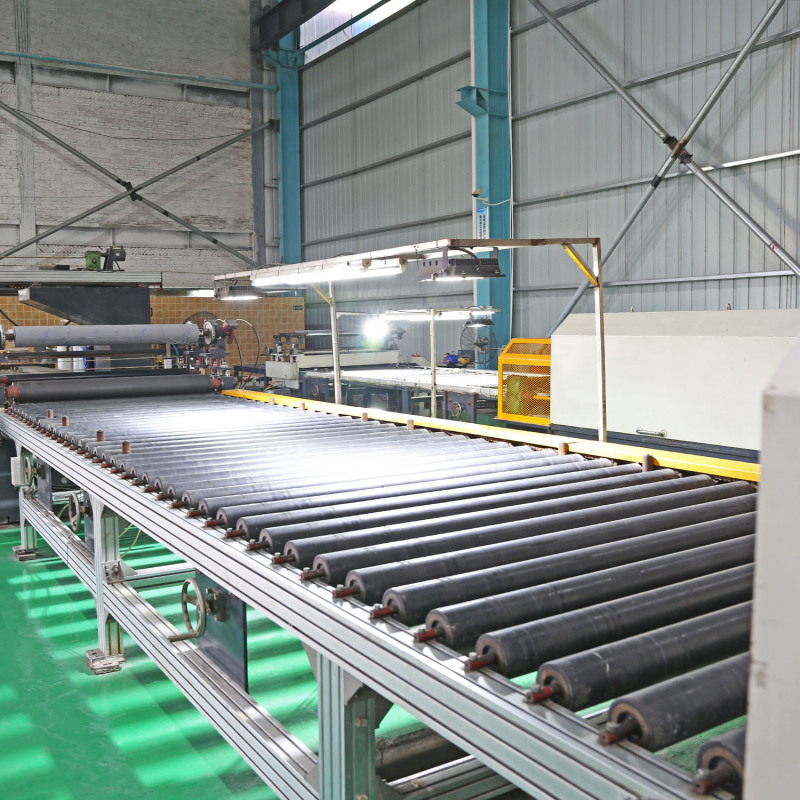

Company picture display
FOSHAN OUYIGANG engaged in design and manufacturing the stainless steel surface processing machinery,the factory of OUYIGANG occupies above 13000 square meters, we are the high-tech company of more than 15years production history, which gather science research,design,produce,sale install,adjust and maintenance.
Our company culture: loyalty,dedication, hard-work and cooperation
Company philosophy:Constant cooperation and mutual benefit, to create greater value for our customers.
Our service concept: Your little case is our big events.
The miss of our company: To pursuit perfect quality, then provide professional service.
Company vision: Building one centennial corporation, setting one international brand.
Company core value:
Observe disciplines and obey laws
Conscientious and love in work
Diligent and eager to learn
Cooperation and innovation
Contact us
Tel:86-757-88627213
Mobile phone:+86-13425703089/+86-15813609231
Address detail :No.19,Xingliang Road, Sanzhou Town, Hecheng Street,Gaoming District, Foshan City,Guangdong Province,China.
City: Foshan
Province:Guangdong
Country:China
FAQ
Q1. How to get the most suitable polishing machine and best price
A: Please tell the material you want to working on? and the specification of your working material?
Q2. Do you have the manual of the polishing machine Except the automatic machinery?
A: Yes, we have.
Q3. If we don’t know how to use the polishing machine, can you teach us?
A: our customer support engineer will go to cutomer's factory to install the machine , and they will teach the skilled labor complete knowledge about the machine.
Q4. Do you have the machinery applying to the special steel sheet?
A: When the sheet thinckness comes to 4mm and more then 4mm, or there is some special performance to your sheet,it is suggested that the customer come to our company talk about the technical requirement with our engineers.
Q5. What is the useful life of your machine?
A: The useful life of the equipment depend mainly on the maintainability, and our machine can be used for more then 6 years ,most of it come to above 10 years under normal operation and maintenance.
