Achieving Three Effects in One: NO.4 Finish, Scotch Brite Finish, and Hairline Finish

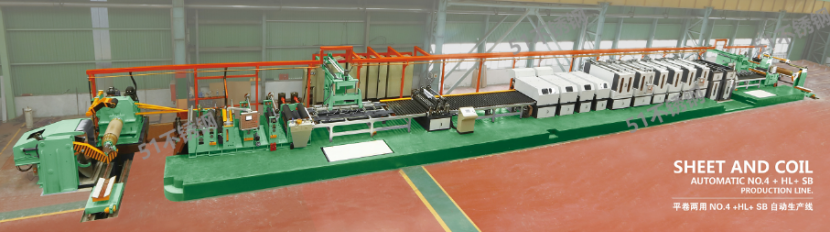

Metal Coil/Sheet Automatic Polishing Machine

This stainless steel polishing machine production line is specifically designed for metal sheets and coils, suitable for metal coils and sheets with a thickness ranging from 0.3mm to 3mm.

This machine can complete three effects on metal—NO.4 finish, scotch brite(SB), and hairline finish—within a single stainless steel polishing and grinding machine production line. It is highly functional, practical, efficient, and fast.

This stainless steel polishing and grinding machine production line is composed of different machines, each for a specific effect, allowing for flexible combinations based on the customer's specific needs.

The stainless steel polishing and grinding machine production line is independently developed by FOSHAN CITY OUYIGANG CNC MACHINERY CO., LTD. and has been in use for over 20 years.

Its core technical advantage lies in the use of rubber roller conveyor feeding, paired with a high-precision inverter speed control system. This ensures stable and reliable transmission even at high operating speeds, tailored to the thickness and surface treatment requirements of different stainless steel materials. It effectively avoids issues such as material deviation and scratching that can occur with traditional mechanical feeding, providing a solid foundation for the uniform application of subsequent NO.4 finish, scotch brite finishes, and hairline finishes.

Processing pure nickel N5 is more challenging than general stainless steel processing. FOSHAN CITY OUYIGANG CNC MACHINERY CO., LTD. undertakes pure nickel N5 stainless steel surface finishing, utilizing this stainless steel polishing machinery production line to achieve a snowflake satin finish. The process effectively controls parameters to ensure consistent snowflake pattern and brightness, earning customer recognition.

Stainless Steel Polishing And Grinding Machine Production Line Features:

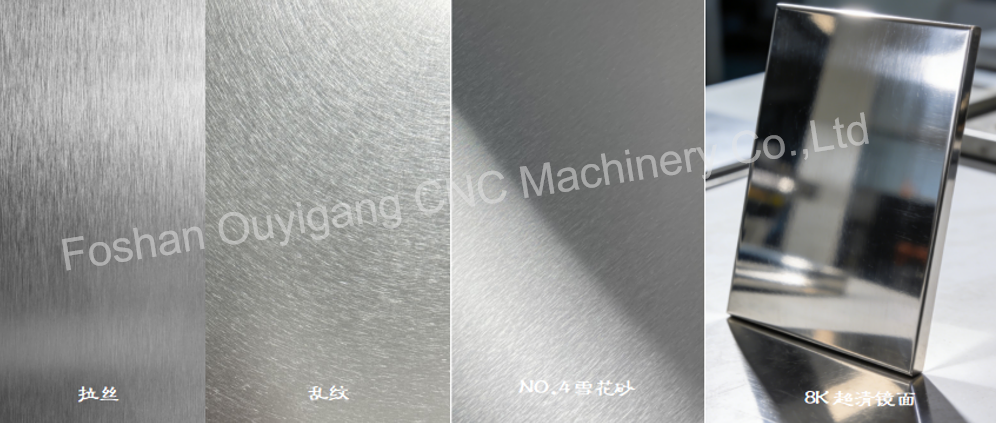

1、This equipment and production line are suitable for producing snowflake patterns, satin finishes, brushed finishes, or combined textures on 0.3mm–3mm domestic and imported 2B and BA stainless steel surfaces.

2、Feeding is realized by floral roller conveyor, with frequency converter for speed regulation, ensuring stable and reliable transmission.

3、The production line integrates sanding, polishing, and brushing designs, resulting in uniform surface textures with good gloss, even long and short grain patterns, and high production efficiency.

4、The control cabinet features a height gauge, providing a digital display of the platform elevator's grinding working height.

5、Electric adjustment of grinding working pressure.

6、Equipped with a sheet cleaning and drying device and a grinding fluid circulation system, allowing the sheet processing to be completed in a single pass.

7、Can be paired with a recoiler and unwinder for processing entire coils.

8、Texture coarseness can be changed by replacing sanding belts according to requirements; textures can be combined freely.

9、Custom designs available based on customer's actual needs.

NO.4 grinding machine：The grinding machine consists of 3 nylon rollers or flap wheel rollers. The grinding rollers use a turbine box synchronous lifting system and electric adjustment of grinding pressure, effectively refining the texture from the previous sanding belt step and enhancing brightness.

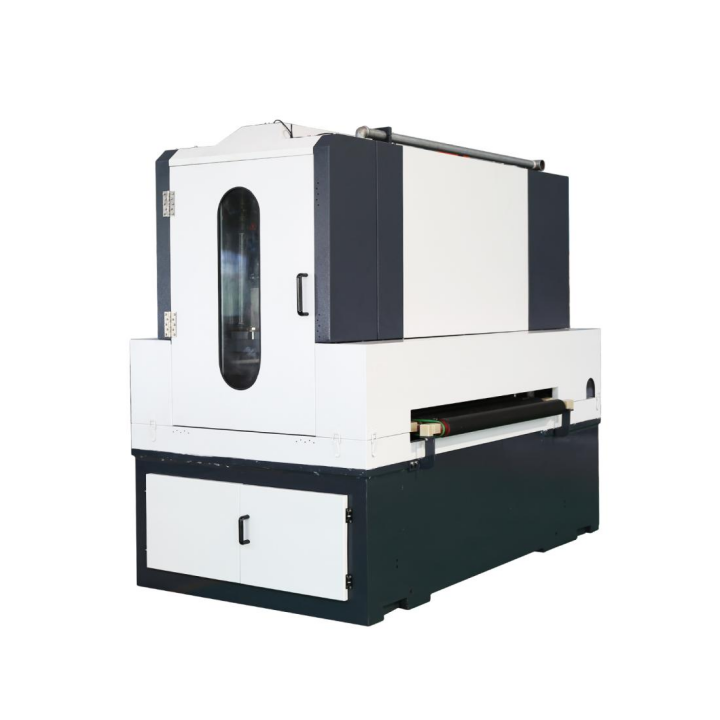

（Scotch Brite Polishing Machine）

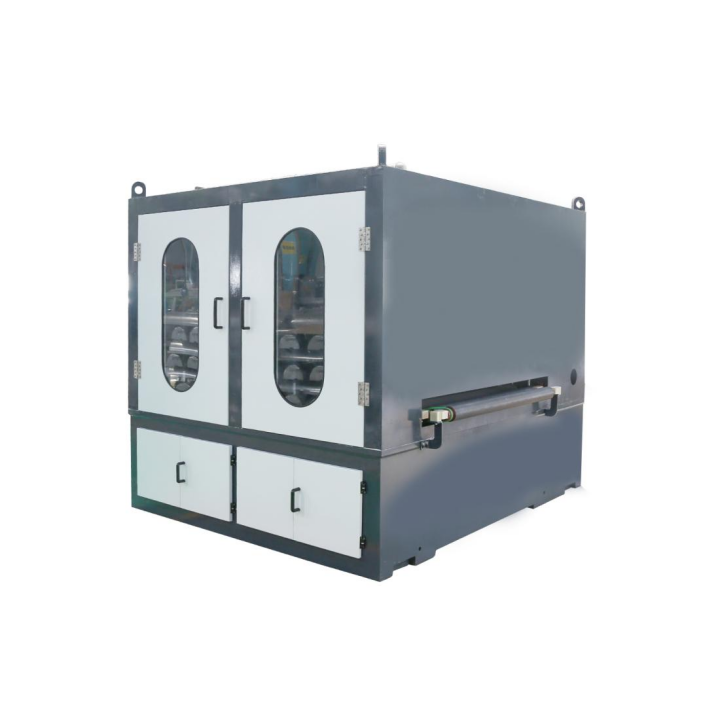

（NO.4 Finish Polishing Machine）

Hairline polishing machine：The hairlinie polishing machine consists of 3-4 sanding belts. The platform uses a roller-type conveyor. The sanding belts utilize a four-column synchronous lifting system, and the belts do not oscillate during grinding, enabling high-quality straight grain finishes. The effect of long or short grains can be achieved by adjusting the speed of the grinding head motor via a frequency converter.

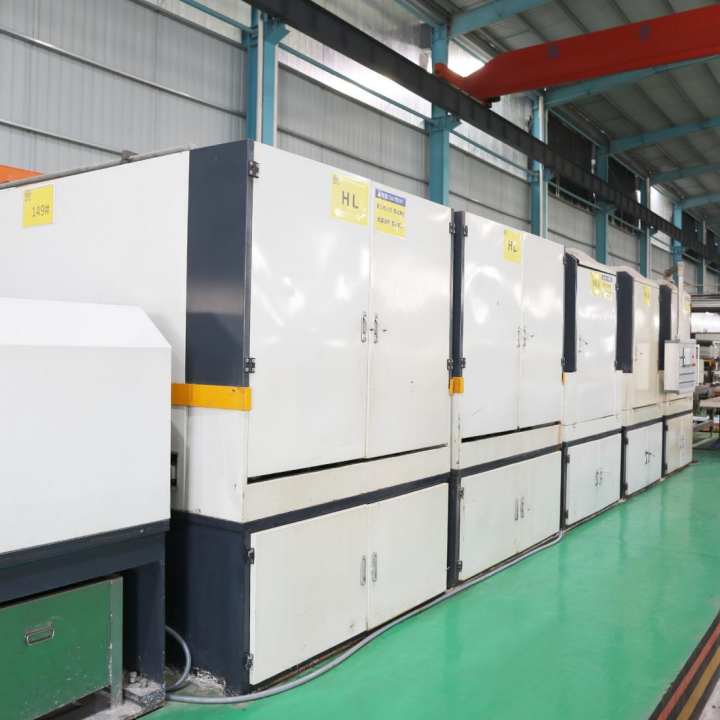

(Hairline polishing machine)

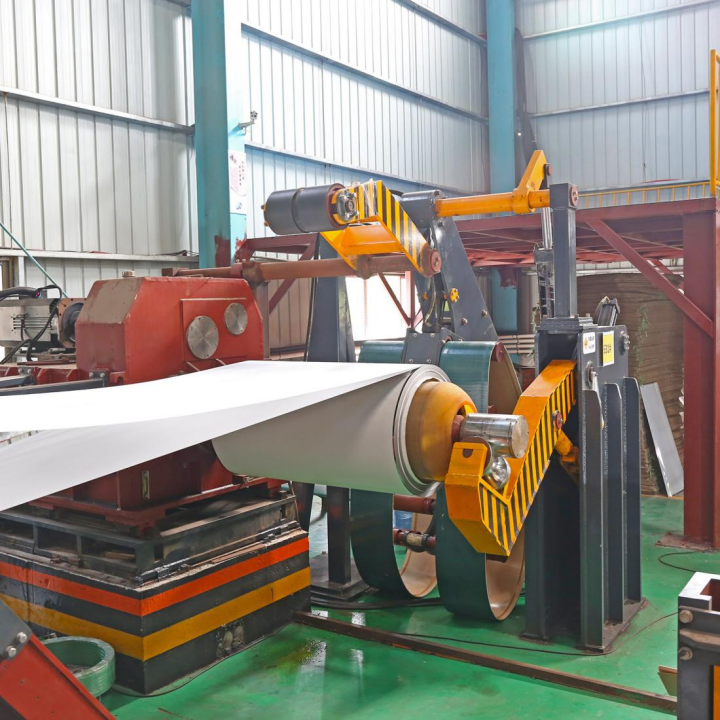

Hydraulic Recoiler/Unwinder: The steel plate is welded and annealed, gears are heat-treated and ground. Polyurethane rubber sleeves and protective plates offer effective protection.

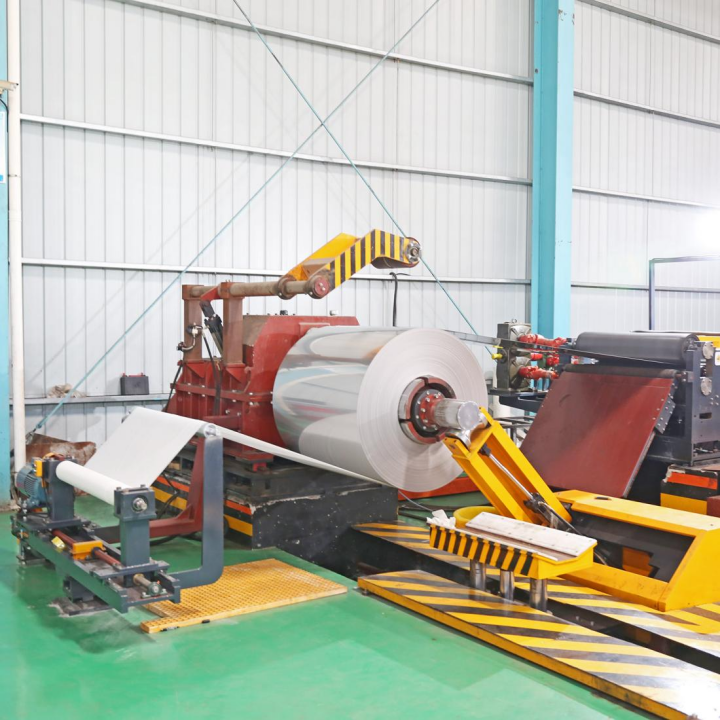

(Hydraulic Recoiler/Unwinder)

Paper Rewinder: Expands and contracts the air shaft pneumatically, collects paper under constant tension, and utilizes linear guides for precise hydraulic control.

(Paper Rewinder)

Support Arm: Hydraulic lifting function.

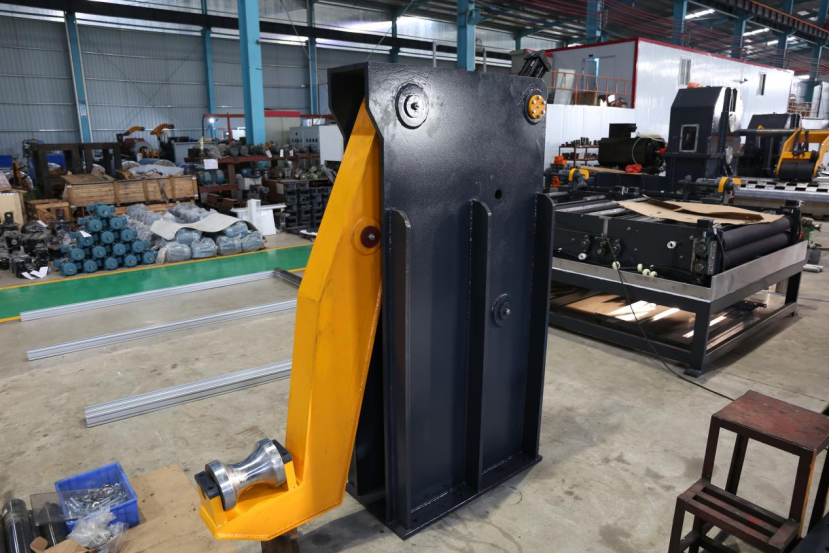

(Support Arm)

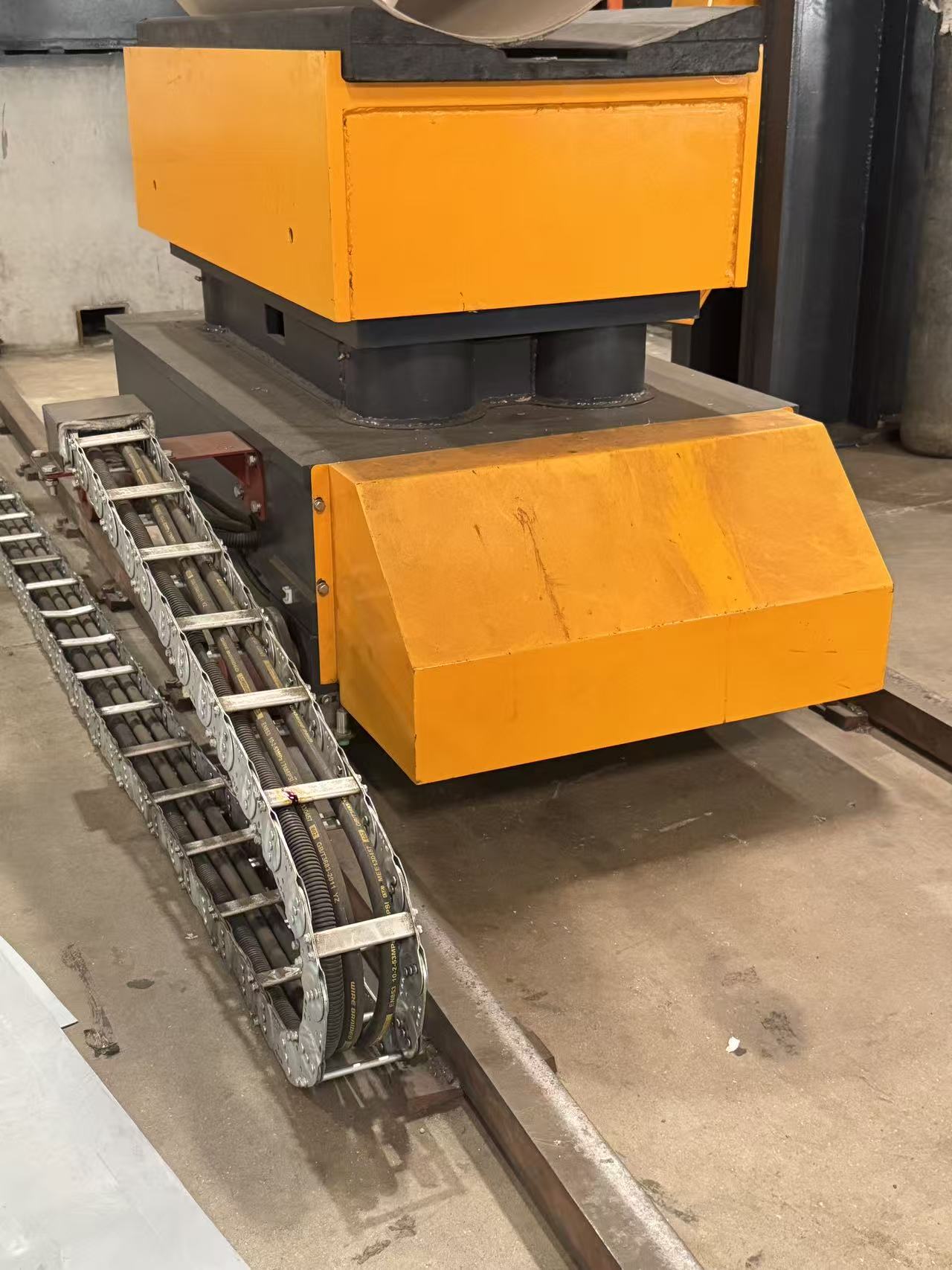

Loading Trolley: Equipped with hydraulic lifting function, forward/backward movement function, and platform nylon protective plates.

(Loading Trolley)

Cleaning and Drying Machine ： This machine features multiple brush rollers for cleaning and a high-pressure fan for drying, capable of completing cleaning and air-drying in one pass. Particularly suitable for dust cleaning and drying of metal sheets and coils after grinding.

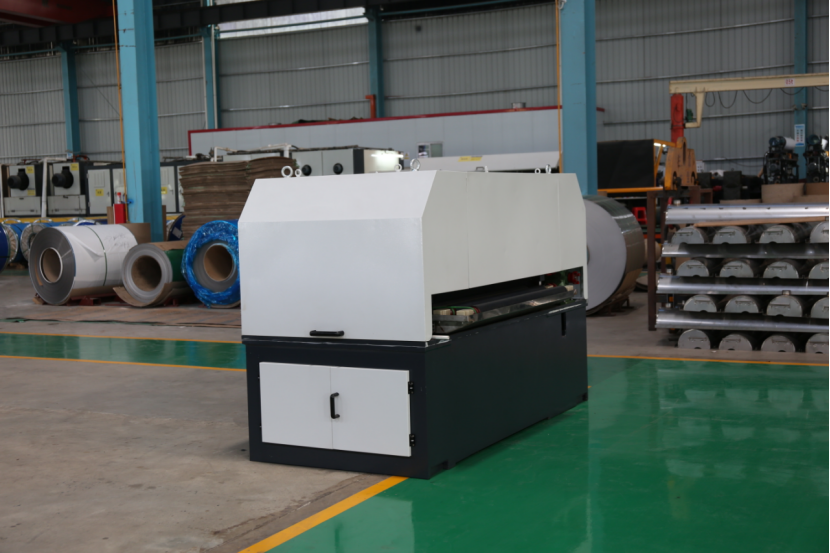

(Cleaning and Drying Machine)

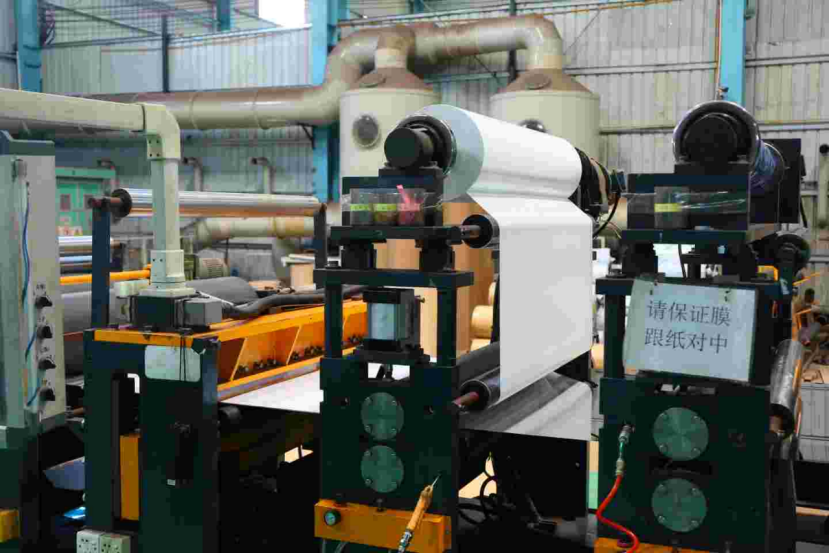

Film Applicator: Automatic film application, effectively prevents scratching of the finished sheets or coils, ensures product quality, and facilitates storage.

(Film Applicatotor)

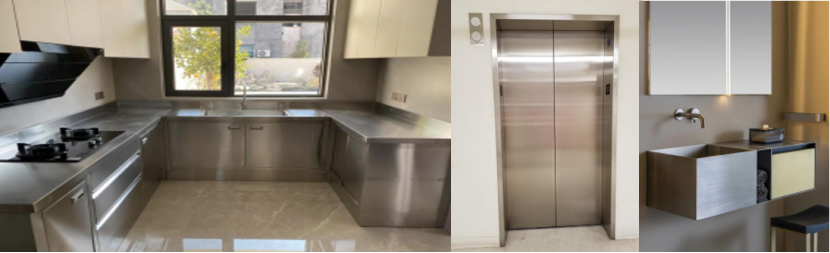

Application Scenarios

Stainless steel is widely used in civilian applications and industrial equipment. Stainless steel processed by FOSHAN CITY OUYIGANG CNC MACHINERY CO., LTD. is extensively used in daily necessities, home furniture, mechanical equipment, and architectural decoration.
